IL300

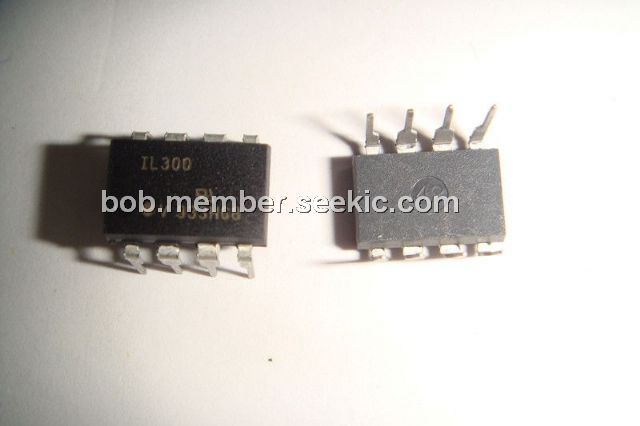

Linear Optocoupler, DIP, 200 kHz, 15 mW, 5300 VRMS, IL300

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.66~0.76 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.66~0.76

PartNumber:: IL300

Brand:: Vishay Siliconix - Vishay | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Luisa's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-12

From Other Seller

Part Number:IL300
US $0.66 - 0.76
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
QM75DY-H

US $16.00 - 30.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The IL300 is a Linear Optocoupler. It consists of an AlGaAs IRLED irradiating an isolated feedback and an output PIN photodiode in a bifurcated arrangement. The IL300 feedback photodiode captures a percentage of the LED’s flux and generates a control signal (IP1) that can be used to servo the LED drive current. This technique compensates for the LED’s non-linear, time, and temperature characteristics. The IL300 output PIN photodiode produces an output signal (IP2) that is linearly related to the servo optical flux created by the LED. The time and temperature stability of the input-output coupler gain (K3) is insured by using matched PIN photodiodes that accurately track the output flux of the LED. The applications of the IL300 include Power Supply Feedback Voltage/Current, Medical Sensor Isolation, Audio Signal Interfacing, Isolated Process Control Transducers and Digital Telephone Isolation.

Parametrics

IL300 absolute maximum ratings: (1)Power dissipation, Pdiss: 160 mW; (2)Derate linearly from 25℃: 2.13 mW/℃; (3)Forward current, IF: 60 mA; (4)Surge current (pulse width < 10 μs), IPK: 250 mA; (5)Reverse voltage, VR: 5.0 V; (6)Thermal resistance, Rth: 470 K/W; (7)Junction temperature, Tj: 100℃.

Features

IL300 features: (1)Couples AC and DC signals; (2)0.01 % Servo Linearity; (3)Wide Bandwidth, > 200 kHz; (4)High Gain Stability, ± 0.05 %/℃; (5)Low Input-Output Capacitance; (6)Low Power Consumption, < 15 mW; (7)Isolation Test Voltage, 5300 VRMS, 1.0 sec; (8)Internal Insulation Distance, > 0.4 mm for VDE; (9)Lead-free component; (10)Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC.
